Autel MaxiTPMS TBE200 is a new laser-enabled tire tread and brake disc wear examiner, provides quick and accurate wear measurements, measure brake disc wear, no need to remove tires. TBE200 comes with 1.65” AMOLED super retina touchscreen,displaying measurement data curves in real-time, is compatible with Passenger, Commercial and Off-road Vehicles.

Autel MaxiTPMS TBE200Autel MaxiTPMS TBE200

Autel MaxiTPMS TBE200 Highlights

-Tire Tread and Brake Disc Wear Examiner

– Laser-Enabled; No Need to Remove Tire

– 1.65” AMOLED Super Retina Touchscreen Display

– Full Color Graphical Display Illustrates Wear

– Compatible with Passenger, Commercial and Off-road Vehicles

– Displays Recommendations for Tire and Brake Disc Replacement, 4-wheel Alignment and Tire Rotation

– 4-megapixel, 4 cm Macro Camera and 8-megapixel Zoomable Camera to Document Tire Damage

– Work Alone or with New MaxiTPMS ITS600 Tablet

– Scan Tire Identification Number (TIN)

– 3000 mAh Lithium-Ion Battery

Autel MaxiTPMS TBE200 Functions

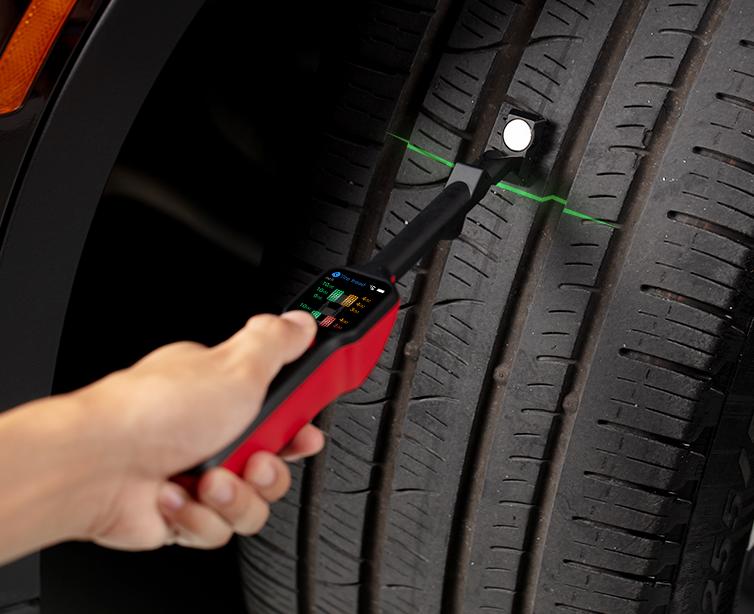

1.Laser Measurement

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement

• Laser measurement with 0.1mm accuracy

• Full tread measurement

• Quick Check both tread depth & brake disc

2.Real-time Tire Health Analysis

• Real-time measurement data on touchscreen

• Measurement data curve display

• Uneven wear analysis

• Test detail for single tire tread / brake disc

• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)

• Scan DOT, tire expiration notice, tire recall lookup

• Take photos of tire wear & damage

Autel MaxiTPMS TBE200

3.Comprehensive Test Report

Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)

Autel MaxiTPMS TBE200

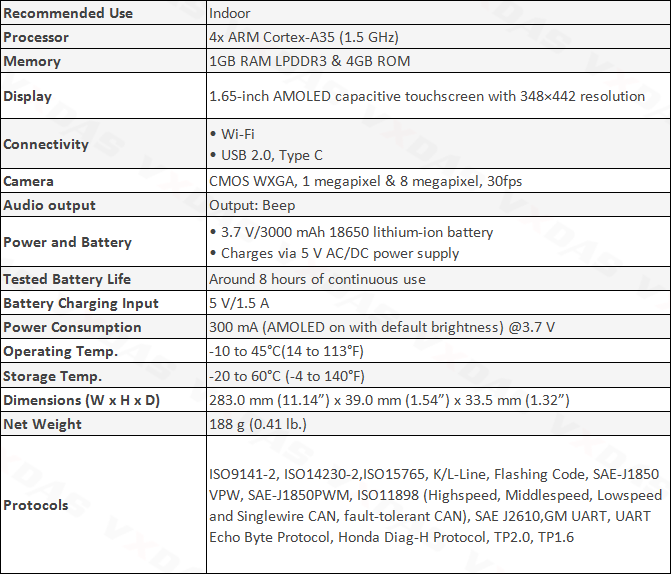

Autel MaxiTPMS TBE200 Specification

Autel MaxiTPMS TBE200

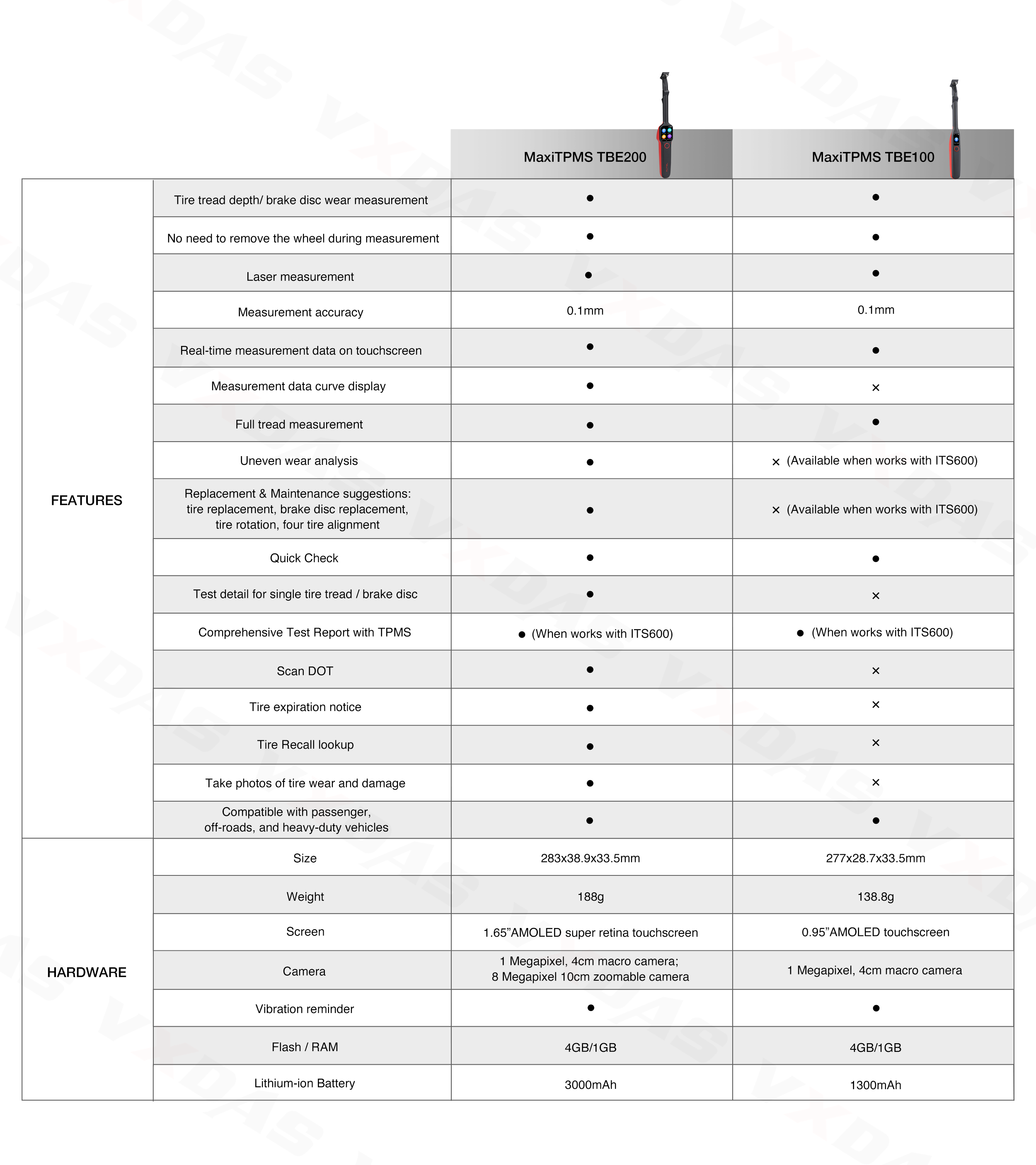

Autel MaxiTPMS TBE200 VS. TBE100

Autel MaxiTPMS TBE200
