PP200 is new generation of intelligent circuit analyzer, can test all 9V-30V electronic systems, comes with (320*240 DPI) TFT true color display,test time is greatly shortened, convenient, fast and smarter.

P200 Intelligent Circuit Analyzer

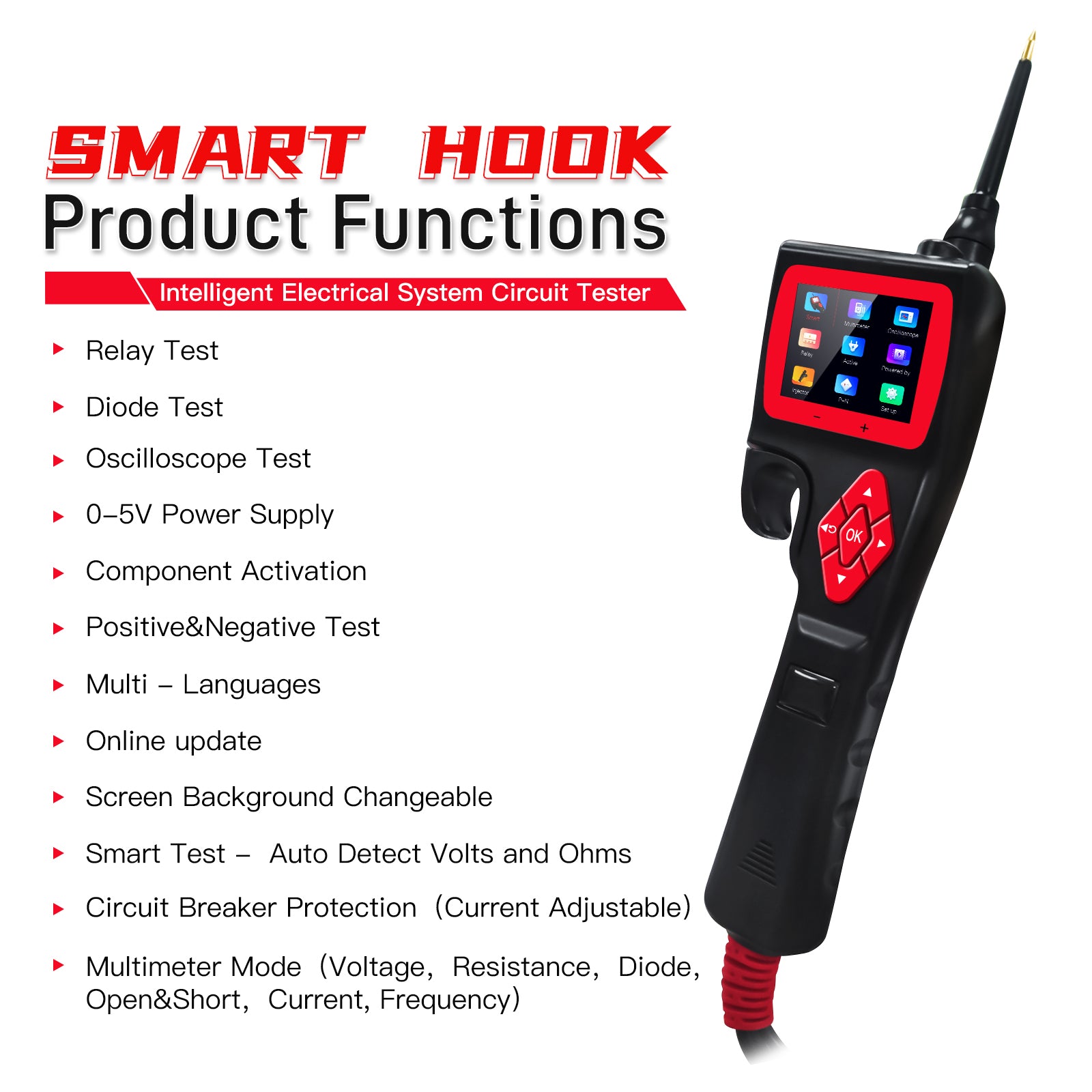

P200 Powerful Probe Hook Intelligent Circuit Analyzer Highlights

1. Intelligent identification of voltage/resistance
2. Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3. Relay test
4. Injector test
5. Diode test
6. Oscilloscope function
7. 0-5V adjustable power supply
8. Activation of vehicle components
9. Positive and negative polarity test
10. Intelligent circuit breaker protection (adjustable overload)
11. Screen style background optional
12. Network online upgrade
13. Built-in Multi-languages

p200 Circuit Analyzer Specifications and Parameters

1. Display: (320*240 DPI) TFT true color display
2. Working temperature: 0-60°C (32-140 F°)
3. Storage temperature: 40-70°C (-40-185 F°)
4. External power supply: 12V or 24V powered by battery
5. Minimum working voltage: 9V
6. Maximum working voltage: 30V
7. Maximum measuring voltage: 150V
8. Minimum measuring voltage: 0.1V
9. Resistance measurement range: 1 ohm~200K ohm
10. Current measuring range: 0~18A
11. Maximum continuous current: 18A

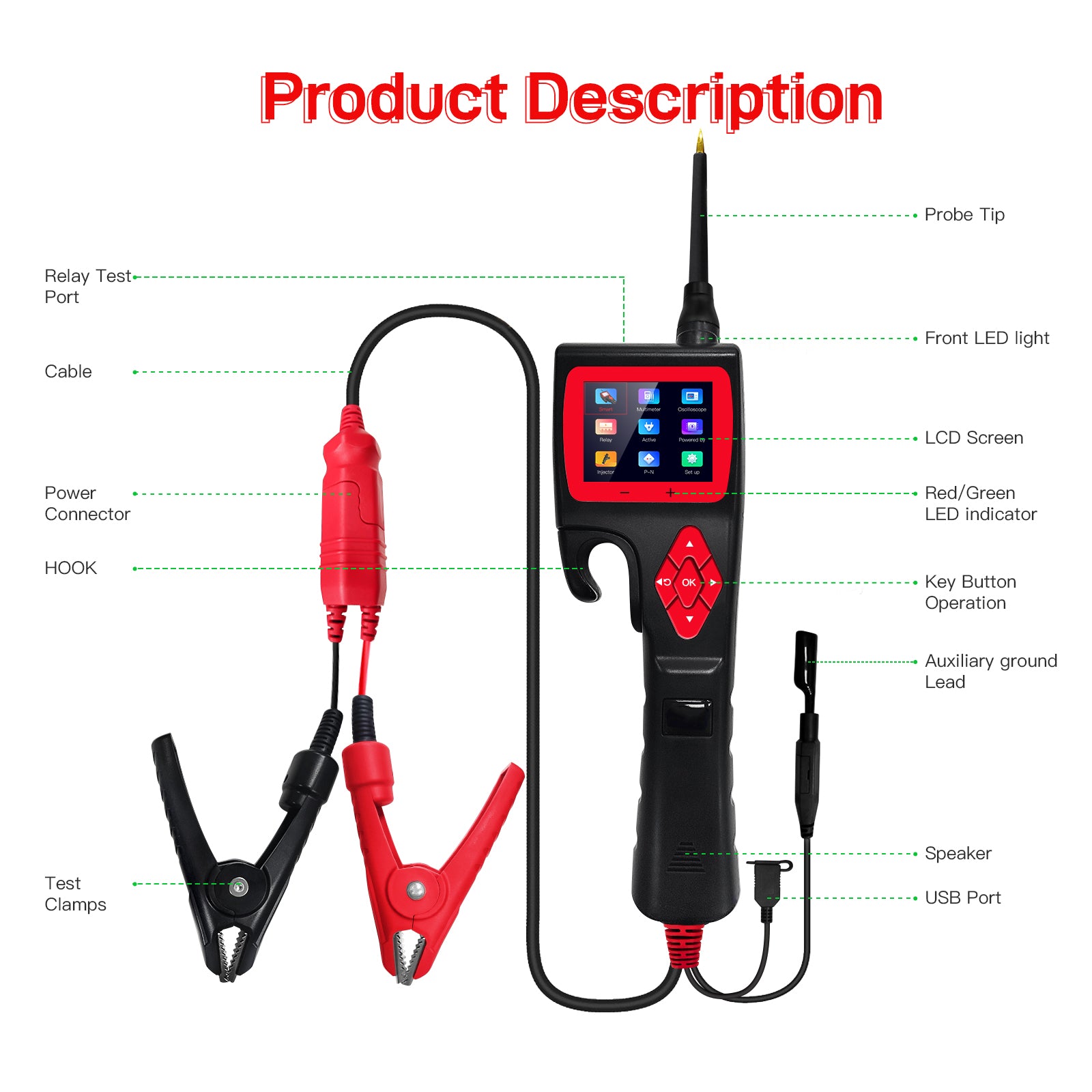

P200 Powerful Probe Hook Intelligent Circuit Analyzer
