Smokeman m3 automotive diagnostic smoke leak detector is used to detect vehicle gas circuits and oil leaks, supports cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats etc.

smokeman m3

smokeman m3

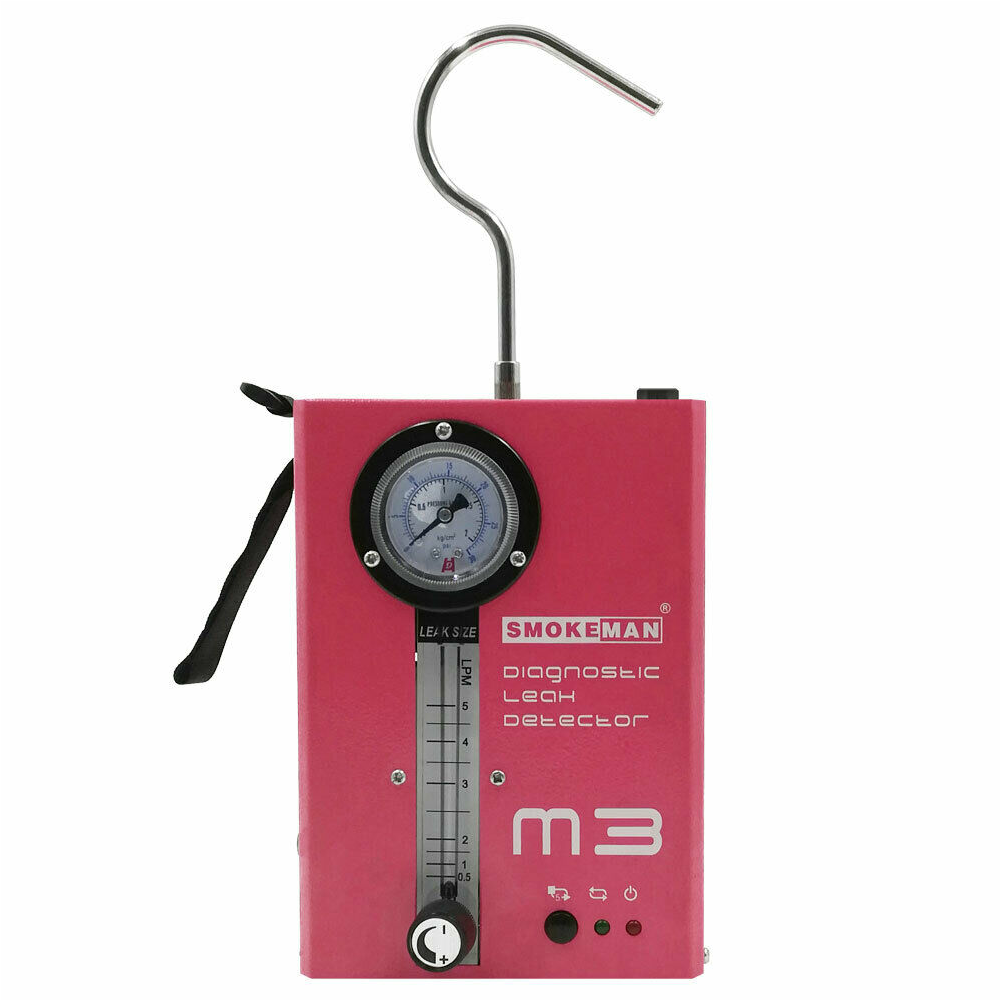

Smokeman M3 Automotive Diagnostic Smoke Leak Detector Overview

Smoke Adjustment: Yes

Type: Smoke Leak Detector

System Application: Except EVAP System & A/C System

Mode: Air Mode & Smoke Mode

Power Supply: 12V Vehicle Battery

Current: <8A

Leak Status Indication: Pressure Gauge

Smoke Oil Container: 50ml

Output Pressure: <1.2bar | 17psr

Max Flow Rate: <7L/M

Power Cord: Detachable & Approximate 2.5m

Smoke Hose: Detachable & Approximate 2.5m

In-built Air Compressor: Yes

Vehicle Type: ATV, Heavy Duty/Commercial, Motorcycle, Passenger Vehicle

Working Cycle: automatic stop in 5 minutes

Supported System: TURBO Charging System, Transmission, Crankcase, ABS, DPF, EPB, SAS, SRS, TPMS, Pipeline, Intercooler, Oil Seal, Throttle, Intake Manifold Gasket, Exhaust Pipe, All Types of Connectors, Fuel Pipe, Car Window Sealing etc.


Smokeman M3 Detector Supports Below System

Intake system

Exhaust system

EVAP system

Cooling system

Wind and water leakage

Crankcase system


Pipe fittings

smokeman M3

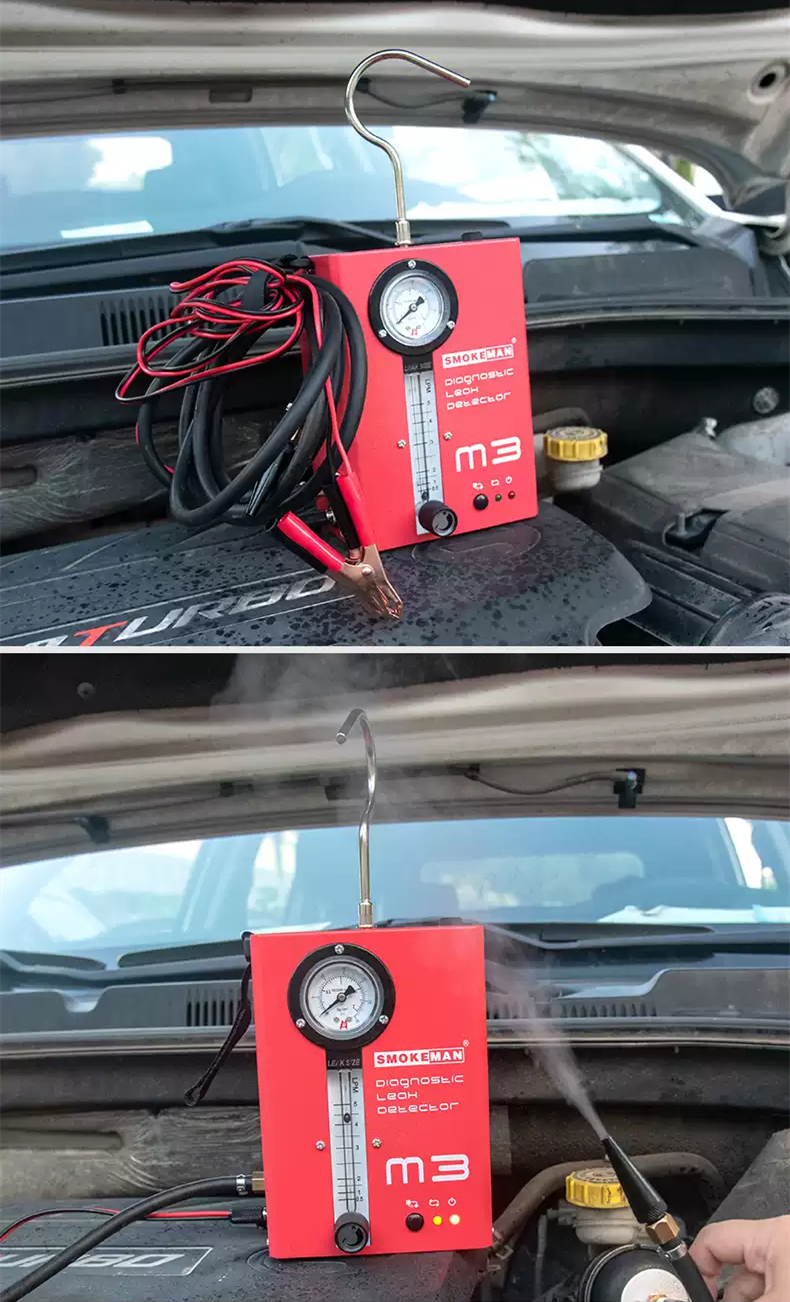

Smokeman M3 Detector Operation Steps:

1. Open the sealed lid

2 Insert the universal intake pipe (air drum)

3. Powered from car battery (12v)

4. Press the power switch to set the time

5. Adjust the smoke flow when the smoke flow becomes larger

6. Connect to the inlet port

7. You can detect the location of the air leak
